Sequences¶

picea represents a single biological sequence as a Sequence, and groups of sequences as a SequenceCollection (unaligned) or a MultipleSequenceAlignment (aligned).

import numpy as np
from matplotlib import pyplot as plt

from picea import MultipleSequenceAlignment, Sequence, SequenceCollection

Single sequences¶

A sequence has a header and a sequence string. When no alphabet is given, picea picks the best matching one (DNA or amino acid).

dna = Sequence("my_gene", "ATGGCTAGCAAAGGAGAAGAACTTTTCACTGGATAA")
dna

Sequence(header='my_gene', alphabet=Alphabet(name='DNA', members='-?acgtnACGNT'))

dna.alphabet.name, len(dna)

('DNA', 36)

Sequence("peptide", "MKVLAAGIVGLL").alphabet.name

'AminoAcid'

Transformations return new sequence objects, so they can be chained.

dna.reverse_complement.sequence

'TTATCCAGTGAAAAGTTCTTCTCCTTTGCTAGCCAT'

dna.amino_acids.sequence

'MASKGEELFTG*'

dna[:12].lowercase.sequence

'atggctagcaaa'

print(dna.to_fasta(linewidth=20))

>my_gene
ATGGCTAGCAAAGGAGAAGA
ACTTTTCACTGGATAA

Sequence collections¶

Collections are read from and written to fasta or json. This file contains protein sequences of hydroxycinnamoyl transferase (HCT) homologs from several plant species.

seqs = SequenceCollection.from_fasta(filename="data/HCT.fasta")
len(seqs), seqs.headers[:3]

(41, ['Glyma.08G220200.1', 'Medtr4g007540.1', 'Eucgr.F03978.1'])

Index by header to get a Sequence, iterate to get all of them, or use iloc to select a subset by position.

seqs["AT5G48930.1"].sequence[:60]

'MKINIRDSTMVRPATETPITNLWNSNVDLVIPRFHTPSVYFYRPTGASNFFDPQVMKEAL'

lengths = [len(seq) for seq in seqs]
min(lengths), max(lengths)

(312, 497)

subset = seqs.iloc[:3]
print(subset.to_fasta(linewidth=60))

>Glyma.08G220200.1
MMINVKESTMVRPAEEVARRVVWNSNVDLVVPNFHTPSVYFYRSNGAPNFFDGKVMKEAL
TKVLVPFYPMAGRLLRDDDGRVEIDCDGQGVLFVEADTGAVIDDFGDFAPTLELRQLIPA
VDYSQGIASYPLLVLQVTHFKCGGVSLGVGMQHHVADGASGLHFINTWSDVARGLDVSIP
PFIDRTILRARDPPRPIFDHIEYKPPPAMKTQQATNASAAVSIFRLTRDQLNTLKAKSKE
DGNTISYSSYEMLAGHVWRSVSKARALPDDQETKLYIATDGRSRLQPPTPPGYFGNVIFT
TTPIAVAGDLMSKPTWYAASRIHNALLRMDNDYLRSALDYLELQPDLKALVRGAHTFKCP
NLGITSWTRLPIHDADFGWGRPIFMGPGGIAYEGLSFIIPSSTNDGSLSVAIALQPDHMK
LFKDFLYDI
>Medtr4g007540.1
MIINVRDSTMVRPSEEVTQRTVWNSNVDLVVPNFHTPSVYFYRPNGASNFFDAKVLKEAL
SKVLVPFYPMAGRLRRDEDGRVEIDCDGQGVLFVEADTGGVVDDFGDFAPTLELRQLIPA
VDYSRGIETYPLLVLQVTYFKCGGVSLGVGMQHHVADGASGLHFINTWSDVARGLDVSMP
PFIDRTLLRARDPPRPVFDHIEYKPPPSMKTHQQPTKPGSDGAAVSIFKLTREQLNTLKA
KSKEAGNTIHYSSYEMLAGHVWRSVCKARSLPDDQETKLYIATDGRARLQPPPPPGYFGN
VIFTTTPIAIAGDLMTKPTWYAASRIHNALSRMDNEYLRSALDFLELQPDLKALVRGAHT
FKCPNLGITSWARLPIHDADFGWGRPIFMGPGGIAYEGLSFIIPSSANDGSLSVAIALQH
EHMKVFKDFLYDI
>Eucgr.F03978.1
MISTFSRMIINVKGSTVVCPAEDTPRCTLWNANVDLVVPSMHTPSVYFYRPTGSDDFFDS
RVLKEALSRALVLFYPMAGRLKRDEDGRIEIDCNAEGVLFVEAETSSVINDFGDFAPTLE
LRKLIPAVDYSGGISSYPVLVLQVTYFKCGGVSLGVGMQHHVADGFSGLHFVNTWSDLAR
GLDVKLPPFIDRTLLRAHSPPRPQFPHIEYQSPPALRVSPETTNSAPYSTTVSIFKVTRE
QLDTLKTQAELENGNITSYSSYEILAGHVWRCACRARGLSDDQDSKLYIATDGRMRLSPP
LPRGYFGNVIFTATPIAVAGDLISKPVSYAAQKIRESLARMDDDYLRSALDYLELQPDLS
ALVRGAHTFRCPNLGITSWVRLPIHDADFGWGRPIFMGPGGIAYEGLSFILPSSTSDGSL
SVAISLQTEHMKLFEKFLYDFPGESPRKRCKLDD

Headers and sequences can be modified in place.

subset.rename_inplace(lambda header: header.split(".")[0])
subset.headers

['Glyma', 'Medtr4g007540', 'Eucgr']

subset.add(Sequence("my_protein", "MASKGEELFTG"))
subset.headers

['Glyma', 'Medtr4g007540', 'Eucgr', 'my_protein']

print(subset.to_json(indent=2)[:200])

[
  {
    "header": "Glyma",
    "sequence": "MMINVKESTMVRPAEEVARRVVWNSNVDLVVPNFHTPSVYFYRSNGAPNFFDGKVMKEALTKVLVPFYPMAGRLLRDDDGRVEIDCDGQGVLFVEADTGAVIDDFGDFAPTLELRQLIPAVDYSQGIASYPLLVLQVTHFKCGGVSLGVGMQHH

Multiple sequence alignments¶

A MultipleSequenceAlignment stores sequences of equal length (gaps are -).

msa = MultipleSequenceAlignment.from_fasta(filename="data/multiple_sequence_alignment.fasta")
msa.n_seqs, msa.n_chars

(41, 577)

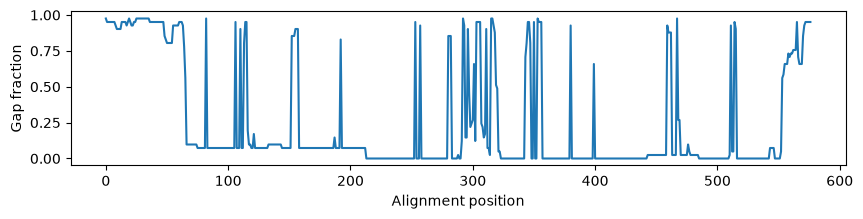

Alignment columns are easy to analyse with numpy, for example the fraction of gaps per alignment position.

columns = np.array([list(sequence) for sequence in msa.sequences])
gap_fraction = (columns == "-").mean(axis=0)

fig, ax = plt.subplots(figsize=(10, 2))
ax.plot(gap_fraction)
ax.set_xlabel("Alignment position")
ax.set_ylabel("Gap fraction");

../_images/bcc8ec987791e93d69c3928c0cc1958aa616f8d8597dfbf54c984c5a00c04743.png

Unaligned collections can be aligned with an external aligner that reads fasta from stdin, such as MAFFT (not run here):

msa = seqs.align(method="mafft")
